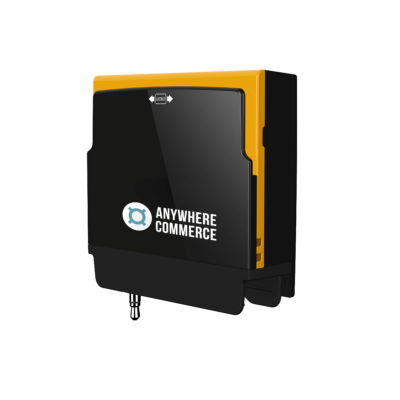

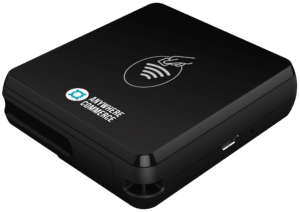

Chip & Sign Walker C2X

Chip & Sign Walker C2X

Accept EMV Cards & Contactless Payments

Walker C2X is an EMV-certified compact payment acceptance device that transforms smartphones, tablets and PCs into robust, secure mPOS solutions.

Chip & PIN
Chip & Sign

Walker C2X Features

Accept EMV & Digital Wallets

Enables merchants to accept EMV Chip & Sign, NFC contactless cards, digital wallets such as Apple Pay and Android Pay, as well as magstripe payments

Robust Security

Advanced encryption technology ensures secure, reliable operation in mPOS applications

Remote Updates

Over-the-air firmware updates and remote key injection facilitate field-level upgrades

Wide Range of OSs

Compatible with most smartphones and tablets running Android, iOS, Windows and MacOS

Walker C2X Details

Walker C2X is a compact, powerful card reader that supports EMV Chip & Sign, contactless payments like Apple Pay and Android Pay, and magstripe payment technologies.

For convenience, a removable sticky pad is available to firmly adhere the card reader to a paired device.

Walker C2X’s embedded card reader expands a merchant’s ability to process card-present transactions anytime, anywhere via swipe, dip or tap. The device is also well suited for enterprise applications, whether part of a fixed tablet POS, or when integrated with mobile line-busting and tableside payment applications.

Firmware updates and key injection are supported via remote OTA (Over-the-Air) transmission, ensuring the device stays current. Walker C2X can be integrated with POS and payment apps using intuitive APIs and SDK developer tools or can be part of an end-to-end custom mobile payment solution.

Walker C2X Specifications


EMV chip card reader
ISO 7816 compliant class A, B, C card

Triple track magnetic stripe card reader
NFC card reader
EMV contactless, ISO 14443A/B

Over-the-air firmware update

Over-the-air cryptographic-key loading


66.6 x 59.7 x 18.5 mm / 2.62 x 2.35 x 0.73 inch (approx.)


67g / 2.36oz (approx.)


LED status indicators for battery and NFC

Power & Charging

Micro USB

Lithium polymer rechargeable battery 650mAH, 3.7V

Battery Life

Above 800 EMV transactions, or above 5000 magnetic card swipe transactions, or above 1000 EMV contactless transactions for one full charge


Bluetooth 2.1 & 4.0, micro USB

Key Management





Security & EMV Certifications
EMV L1/L2 contact
EMV Contactless L1

Contactless Certifications
Mastercard PayPass, Visa PayWave, Amex ExpressPay,
ApplePay, AndroidPay, Discover

mPOS Certifications
MasterCard Mobile POS, VISA Ready

Quality/Regulatory Certifications
MasterCard TQM, FCC, CE, RoHS

Card Reader

Dual track MSR (1&2 or 2&3)

Swipe Speed

15cm – 100cm/sec


Android 2.1 or above

iOS 6.0 or above

Windows Phone 8 and above

Windows & MacOS

Operating Life
per Charge

500 EMV dips

700 NFC taps

4000 MSR swipes


LED status indicator & NFC LED indicators


6 months
