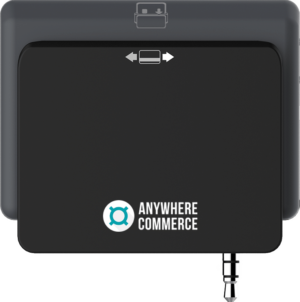

Chip & Sign Walker 2

Compact Payment Acceptance Device

Walker 2 is a rugged, compact payment acceptance device that transforms smartphones, tablets and PCs into highly secure, fully-functioning mPOS solutions.

Apps
Contactless
Chip & PIN
Chip & Sign
Magstripe

Audio Jack & Micro USB

Bluetooth & Micro USB

Walker 2 Features

EMV Certified

Enables merchants to accept EMV Chip & Sign and magstripe payments

Certifications

EMV Level 1 and Level 2 certified, Certified Visa Ready, Mastercard mPOS and Amex enabled

Connectivity

Choice of device with Bluetooth/Micro USB or Audio Jack/ Micro USB

Robust Security

Encryption technology provides secure, reliable operation in mPOS applications

Remote Support

Over-the-air firmware updates and remote key injection facilitate field-level upgrades

Wide Range of OSs

Compatible with most mobile smartphones and tablets OSs

Walker 2 Details

Walker is EMV L1/L2 compliant and supports Chip & Sign and magnetic stripe payment technologies.

Walker employs the latest end-to-end encryption technology to ensure secure, reliable operation in mobile POS applications.

Walker connects to a phone or tablet using your choice of Bluetooth, audio jack or micro USB technology. A removable sticky pad is available to firmly adhere the Bluetooth version to a device for convenience.

Walker supports OTA (Over-The-Air) firmware and key injection updates, providing frictionless field-level changes.

The device can be integrated with POS and payment apps using intuitive APIs and SDK developer tools, or can be part of an end-to-end custom mobile payment solution.

Walker 2 Specifications

Functions

EMV chip card reader (ISO 7816 compliant class A, B, C card)

Magstripe card reader dual track 1, 2

Over-the-air firmware and key updates

Communication
Interface

Bluetooth 4.0, micro USB
OR
3.5mm audio jack, micro USB

Power, Battery & Charging

Lithium polymer rechargeable battery 125mAH, 3.7V

Charges via micro USB

Indicator

LED status indicator

Key Management

DUKPT, MK/SK

Encryption
Algorithm

TDES, AES

Certifications

EMV L1/L2

Visa Ready

Mastercard TQM

Mastercard Mobile POS

Amex Enabled

FCC, CE, RoHS

PBOC 3.0 L1 & L2

BT QDID (Bluetooth version)

Dimensions

Audio jack: 60.6 x 47.3 x 16.9mm

Bluetooth: 61.8 x 44.5 x 14.2mm

Weight

Audio jack: 40g

Bluetooth: 29.8

Removable StickyPad
(Bluetooth)

56 x 39mm

Operating
Systems

Android 2.1 or above

iOS 6.0 or above

MS Windows
