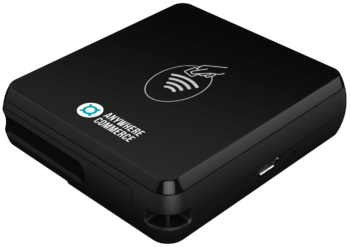

Chip & Sign Walker C2X

Accept EMV Cards & Contactless Payments

Walker C2X is an EMV-certified compact payment acceptance device that transforms smartphones, tablets and PCs into robust, secure mPOS solutions.

Apps
Contactless
Chip & PIN
Chip & Sign
Magstripe

Audio Jack & Micro USB

Bluetooth & Micro USB

Walker C2X Features

Accept EMV & Digital Wallets

Enables merchants to accept EMV Chip & Sign, NFC contactless cards, digital wallets such as Apple Pay and Android Pay, as well as magstripe payments

Robust Security

Advanced encryption technology ensures secure, reliable operation in mPOS applications

Remote Updates

Over-the-air firmware updates and remote key injection facilitate field-level upgrades

Wide Range of OSs

Compatible with most smartphones and tablets running Android, iOS, or MS Windows

Walker C2X Details

Walker C2X is a compact, powerful card reader that supports EMV Chip & Sign, contactless payments like Apple Pay and Android Pay, and magstripe payment technologies.

There are two Walker device options: Bluetooth/Micro USB technology or Audio Jack/Micro USB technology. For convenience, a removable sticky pad is available to firmly adhere the Bluetooth version to a paired device.

Walker C2X’s embedded card reader expands a merchant’s ability to process card-present transactions anytime, anywhere via swipe, dip or tap. The device is also well suited for enterprise applications, whether part of a fixed tablet POS, or when integrated with mobile line-busting and tableside payment applications.

Firmware updates and key injection are supported via remote OTA (Over-the-Air) transmission, ensuring the device stays current. Walker C2X can be integrated with POS and payment apps using intuitive APIs and SDK developer tools or can be part of an end-to-end custom mobile payment solution.

Walker C2X Specifications

Functions

EMV chip card reader
ISO 7816 compliant class A, B, C card

Triple track magnetic stripe card reader

NFC card reader
EMV contactless, ISO 14443A/B

Over-the-air firmware update

Over-the-air cryptographic-key loading

Dimensions

Audio jack: 62.9 x 59.1 x 18.6mm / 2.48 x 2.33 x 0.73inch (approx.)

Bluetooth: 66.6 x 59.7 x 18.5 mm / 2.62 x 2.35 x 0.73 inch (approx.)

Weight

Audio jack: 76g / 2.7oz (approx.)

Bluetooth: 67g / 2.36oz (approx.)

Interface

LED status indicators for battery and NFC

Power & Charging

Micro USB

Lithium polymer rechargeable battery 650mAH, 3.7V

Battery Life

Above 800 EMV transactions, or above 5000 magnetic card swipe transactions, or above 1000 EMV contactless transactions for one full charge

Communication
Ports

Bluetooth 4.0, micro USB
OR
3.5mm audio jack, micro USB

Key Management

DUKPT, MK/SK

Encryption
Algorithm

TDES, AES

Certifications

Security & EMV Certifications
EMV L1/L2 contact
EMV Contactless L1
PCI PTS 4.x SRED

Contactless Certifications
Mastercard PayPass, Visa PayWave, Amex ExpressPay,
ApplePay, AndroidPay, Discover

mPOS Certifications
MasterCard Mobile POS, VISA Ready

Quality/Regulatory Certifications
MasterCard TQM, FCC, CE, RoHS

Card Reader

Dual track MSR (1&2 or 2&3)

Swipe Speed

15cm – 100cm/sec

Operating
Systems

Android 2.1 or above

iOS 6.0 or above

Windows Phone 8 and above

MS Windows

Operating Life
per Charge

500 EMV dips

700 NFC taps

4000 MSR swipes

Indicators

LED status indicator & NFC LED indicators

Warranty

6 months
